Ethernet question

[cltamt]

Hi Johhny E

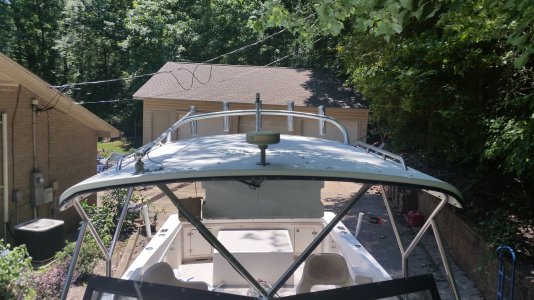

I'm repowering my boat and installing a TZTouch2 12" at my helm station and a DRS4D on the hard top. I'm also wanting to replace my old AM/FM radio in the overhead radio box with a Fusion unit that has ethernet.

Since the DRS will be mounted above the radio box, can I connect the radome and Fusion together with a single inexpensive splitter in the radio box and then run a single ethernet cable down to the TZT2 through the hard top tubing?

Thank you sir!

Larry



[Johnny Electron]

Yes, you can put a low cost hub into the radio box like the TPLINK 5 port hub (~$10). and run a single SHIELDED Ethernet down.



[cltamt]

Yes, you can put a low cost hub into the radio box like the TPLINK 5 port hub (~$10). and run a single SHIELDED Ethernet down.

Thank you Johnny, that's what I needed to know!
