Wiring DFF1-UHD with PM275LHW (TZT 14)

[Tolock1]

After losing temp and not reading bottom greater than 800' on low or high I was told to replace the DFF1-UHD. I just installed the new box and have a few questions...

1. On the WAGO TB4 should I be attaching the bare wire in spot #2 with this transducer? Should the orange wire be connected in spot 3 or left off?

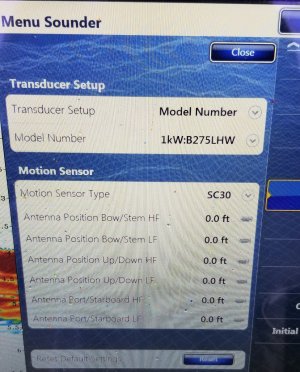

2. In the transducer setup it only shows a B275LHW in the menu, should I select this (is it the same as the PM275 LHW)? Should I be doing the setup through the TD-ID option?

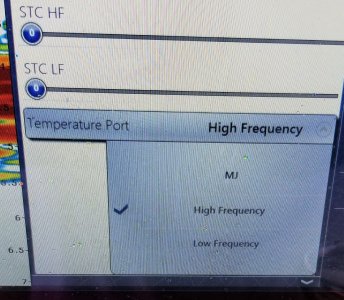

3. Does it matter what temp port I select for the temp?

4. Should all the dipswitchs be off?

Thanks for your help.
Tom



[Tolock1]



[Snips]

Totock1,
The TX/RX capabilities doesn't change on the DFF1-UHD regardless of the transducer selected. Selecting the 275 "should' disable the ACCU-FISH and Bottom Classifation modes because of the 275 wide HF side. Personally I connect the white/brown temp wires to pins 4/5. Leave the dip switches in the default position.

Snips



[Tolock1]

Thank you Snips!

Should the orange wire be connected or left off?



[Johnny Electron]

You want to leave the orange wire off.



[Tolock1]

Thank you guys
