Simrad EVO 3s on N2K with TZT3

[scrapper03]

Due to the limited mapping options with relief shading on the TZT3 I am hoping to build a system with 1 simrad Evo3s and 2 TZT3's all networked together. For this to make me happy I will need them to share waypoints in real-time. For instance, If I drive over a fishy spot and mark it on the TZ will it show up on the Simrad nearly instantly? What other data would be shared across the network(depth, heading sensor info, etc)?



[Magnetron]

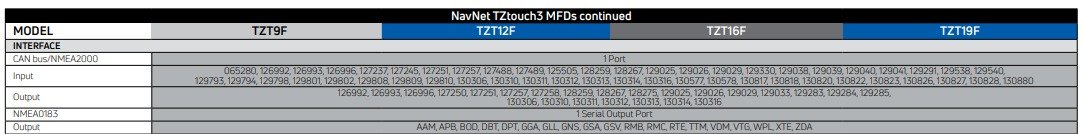

If networked via NMEA0183 or NMEA2000 any PGN or Sentence listed in the TZ Touch 3 brochure can be shared with another NMEA2000/0183 compliant device.

Ref. (See Pg 18.): https://furunousa.com/-/media/sites/fur ... nal-lr.pdf

NMEA2000 PGN reference: https://www.nmea.org/content/STANDARDS/ ... gn__search

Hope this helps, :sail

- Maggy
