Nav Pilot with Raymarine Rudder Reference.

[Osprey32]

Trying to use existing Raymarine rudder reference. Any Idea's? Can it be done?

Ray Marine (Rudder Reference)

• Green
• Blue
• Red
• Bare

Furuno (Processor)

• Black
• Green
• Yellow
• White
• Bare



[Magnetron]

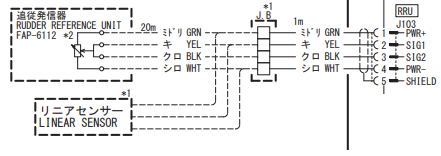

On the Furuno side of things, our FAP6112 is similar and also uses a rheostat. The GREEN and WHITE correspond to PWR+ and PWR-, the others are the wiper (see diagram from the Navpilot300 Installation manual). You can probably find the Raymarine wiring on their website or on the web.

Hope this helps,

-Maggy



[FOCUS01]

How did you get on with the Raymarine RRU?
Am about to do a similar install using the existing RRU with a Navpilot



[Osprey32]

I could not get it to work. Unfortunately I had to purchase the furuno RRU
