Funruno to Gramin via RS422 to RS232 converter

[Anonymous]

I bought Dtech RS232 to RS422 converter.
Can someone please send me a scheme how to over converters connect furuno 587 with Garmin GPSMAP 527 pin to pin ?

I'm sending you the instruction for Dtech converter attached.

Thanks Ivan
View attachment Dtech converter manual.pdf



[Snips]

Ivancg,

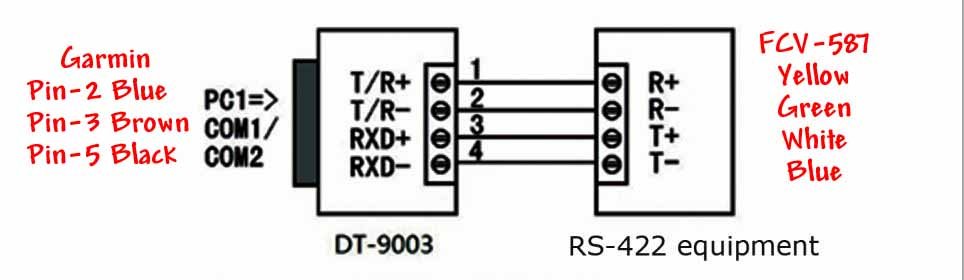

Try the below wiring.

Snips
