DRS4D to GP330B

[little-nellie]

Currently the DRS4D is connected to the MFD12 and is working. Reading the manual, it appears the GP330B can be directly connected to the DRS4D instead of wiring into the CAN bus, is that correct?

I took a look inside the DRS4D and I can't find a CAN bus port. Can you tell me where the port is located?

thanks for your time.



[Johnny Electron]

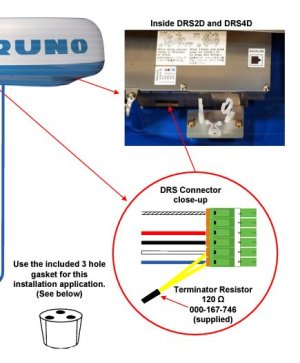

It goes into the WAGO connector shown.



[little-nellie]

thanks.. do I need to run any NEMA 2000 (CAN bus) cable from the radar to the MFD?? or the RJ45 that is currently installed will carry the data?

thanks for your help.



[Johnny Electron]

The RJ45 will carry the GPS or heading down the normal radar cable. While that connection was dropped on new radars, it is a nice option to prevent running a GPS or heading sensor all the way down to the NMEA 2000 backbone.



[little-nellie]

thanks
