Teleflex AR4502 wiring

[KingsEyesSkis]

I'm trying to connect the Teleflex AR4502 to my Navpilot 300 but I'm a bit confused with the wiring and am having trouble finding instructions for which colored wires go to which. There are only 3 colors from the sensor and 4 colors from the processor. Is the FI-5002 junction box still required with the linear RRU or can the connections be made on a connector strip?



[TheReaper]

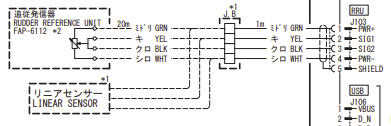

Here's an interconnection diagram snippet from the NAVpilot 300 Installation Manual for the linear sensor:


Bottom line for the AR4502 wiring is:
Red to J103 #1
Wht to J103 #2
Blk to J103 #4

This connection may be made with a junction box (aka connector strip).



[KingsEyesSkis]

Here's an interconnection diagram snippet from the NAVpilot 300 Installation Manual for the linear sensor:
View attachment 4328

Bottom line for the AR4502 wiring is:
Red to J103 #1
Wht to J103 #2
Blk to J103 #4

This connection may be made with a junction box (aka connector strip).

Awesome, thank you!
