ST-02MSB wiring

[ashleys]

I have a TZTL12 connected to DDF3D but also have a ST-02MSB with 6 pin connector, can I cut off the connector and wire this directly to my TZTL or the junction box given there is no direct connection option for the ST-02MSB?



[Johnny Electron]

The ST-02MSB is a simple speed and temp sensor designed to connect up to sounders MJ connection like the DFF3 has. It is not a transducer. No it can not be wired to the TZTL12 as such. While if the TZTL12f has a transducer, it would be possible to use a junction box and wire the temp into the built in sounder replacing the temp sensor used in the transducer. I would recommend you discuss your needs directly with tech support.



[ashleys]

Thanks @Johnny Electron. I have the DFF3 wired to a 165T-B54 transducer, but I also want to get the speed from the ST-02MSB. I also have a FI5002 so was wondering if there was anyway to interface them together, or perhaps I can wire the ST-02MSB directly into the DFF3?



[Johnny Electron]

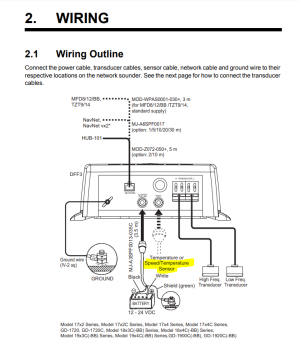

The unit would plug directly on the 6 pin speed/temp connector on the outside of the DFF1. That is the only place that analog speed can connect on that unit.



[ashleys]

On my DFF3D, the port you’re referring to is labelled ‘Motion Sensor’ as is a 7 pin connector, not keyed the same as the 6 pin connector on the ST-02MSB



[Johnny Electron]

DFF3 and DFF3D are not the same units. I don't think the multi-beam sonar offers any speed input. Do you not have a normal sounder?
