Wire color help please

[pepekauai]

Hi guys

I am trying a few different tranducers with my FCV295 and I'm having trouble decoding the wire colors. I've looked all over the internet for wiring diagrams but can't seem to find the right ones. The two tranducers I'm trying are

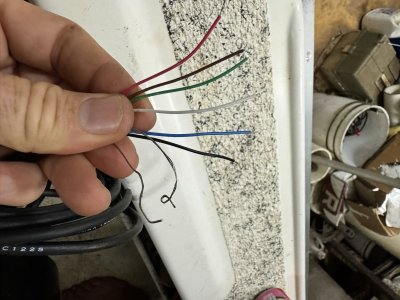

1. An older SS270w photo 1

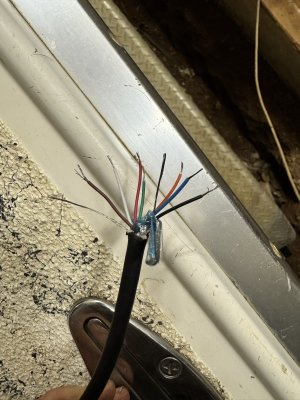

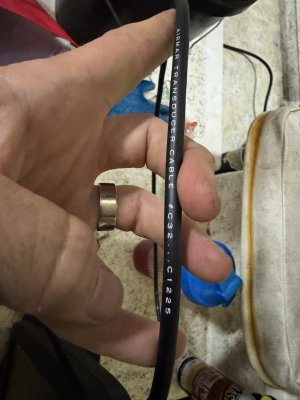

2. An older B260 with a pigtail photo 2 and 3

I'm just looking for what color tranducer wires go to the FCV295 low frequency positive and negatine and the same for high frequency positive and negative.

Thank you for the help



[rockfshr]

Go to airmar site. Here is SS270

https://assets-7484b3de52.cdn.insitecloud.net/251d920c5e410f4/91-911.pdf



[pepekauai]

Thanks rockfshr that looks like the right wiring diagram. Maybe I just don’t know how to read it but it looks like blue and black are the 200 khz wires but I don’t see the 50 khz wires. On my newer transducer I’ve got two wires for each frequency.
