Transducer challange

[Anonymous]

Lost my transom mounted transducer when mount snapped and the prop cut it off.
My question is I have plenty of cable left and want to install a thru hull transducer and rather than running a new cable to the center console ( tight squeeze ) can I wire it directly to the new transducer?
I could also add a connector to the cut end if I could get the pin out. Any advice on how I can connect a new thru hull transducer to the 6 wire cable that use to be connected to the P66 transducer.



[Anonymous]

Correction 8 wire from the old p66 transducer.



[Snips]

No_farmer,
What thru hull transducer are you looking to fit and what sounder are you using?

Snips



[Anonymous]

I have the DFF1 with the 520T-BLD with MDF 12 NN3d



[Snips]

No_farmer,

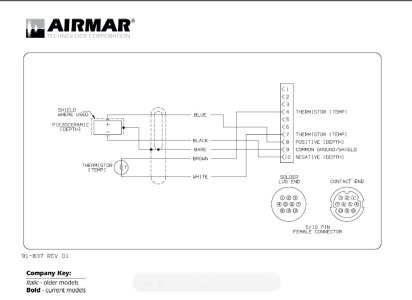

If you were using an 8-pin P-66 going to a DFF1 you must of had an 8 to 10 adapter pigtail, correct? There were a couple of different versions of the P-66, but I am going assume you had one without the paddle wheel. If so, the below wiring diagram should work for you.

Snips



[Anonymous]

You are correct it did not have the pinwheel. Thanks very much for the diagram.
