Furuno dff1 and MB-1100 module to operate at 1kw?

[golosines]

Does the dff1 module with 1kw transducer need the Furuno MB-1100 adapter to operate at 1kw?



[TheReaper]

Does the dff1 module with 1kw transducer need the Furuno MB-1100 adapter to operate at 1kw?

What is the model number for the 1kW transducer you are asking about?



[golosines]

b260



[TheReaper]

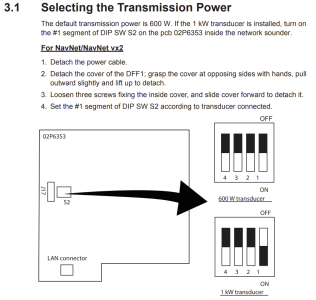

If your B260 has a Furuno 10-pin connector on it, then no matching box needed. Here's how to change the power output on DFF1 from the Operator's Manual.



[Johnny Electron]

It would only need a matching box if it isn't diplexed. The DFF1 needs a diplexed B260 (with one +/-) transducer pair. If you have a non-diplexed B260 that would normally go to something with a HF and LF input (two wire pairs) the you would still need an Airmar matching box to connect it up properly to the DFF1.



[golosines]

This is the connector, it is 10 pins



[TheReaper]

This is the connector, it is 10 pins

Then just connect to DFF1 and set power to 1kW as shown in my previous post.
