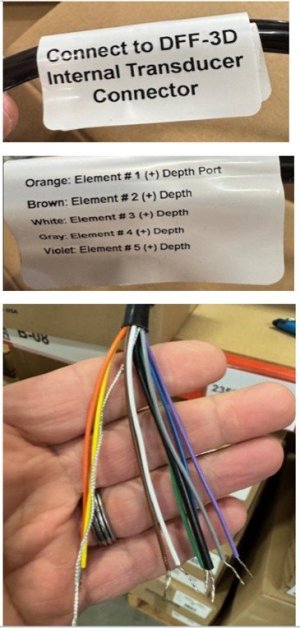

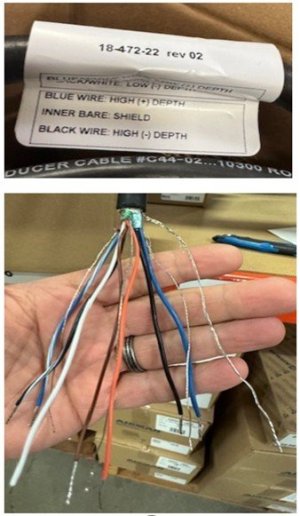

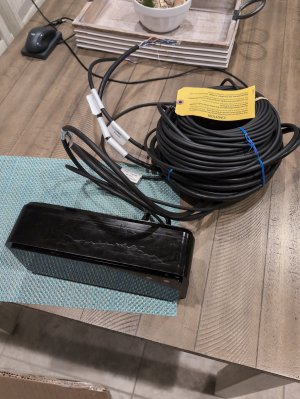

I am connecting a 165T/275LHW transducer to a DFF3D. The DFF3D manual, drawing C1352-C01-H, calls for a cable with 9 wires. My transducer cable has 8 wires and they are different colours than in the DFF3D manual. See attached. The transducer cable has a label specifying the purpose of each wire but I can't find a cross reference to the correct terminals in the DFF3D.
Can you help with this? I need to know which terminal to connect the each wire to.
Can you help with this? I need to know which terminal to connect the each wire to.
