711c with pg500 no compass adjustment data

[johnnyt2000]

Hi all, I’ve had ongoing issues with my 711c and pg500 Ap.

I have changed the heading sensor to a known working one, as we had issues with the boat wandering which I’m 99%sure was due to large metal objects near the heading sensor.

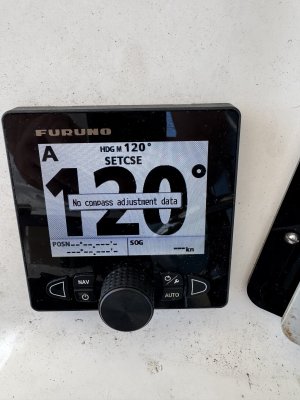

No we factory reset the new pg500 and have a solid status light after start up, but now when I select auto I get message in the Ap and alarms saying “no compass adjustment data” could really use some help to sort it out and would like to thank you in advance for any advice!



[johnnyt2000]

I should add, we haven’t been able to get the boat out to do the circles sea trial setup. And the display is receiving a heading position that matches my traditional compass.
