DFF 3d Cross section Roll

[Aggeloseco]

Hello I was with the Boat today after 3 months time, DFF3D was reinstalled yesterday, wires are being installed like the Photo instruction on the outside of the Box, everything is fine ok but I have a really big Rolling effect , even in 1 feet Wave , it is like the motion wire wasn’t connected, I double checked it but the cable is in place. In the setting, pitch and roll is also set to internal sensor

I have a video I will post it later

Do you have any clue why is tis happening?



[Aggeloseco]

https://www.youtube.com/watch?v=0jcrjAmvBdE



[Aggeloseco]

Any suggestion please? I can't do anything because of this problem..
Could the motion sensor being somehow damaged?



[Snips]

Aggeloseco,
What sensor are you using?
How is it mounted?
What are your offsets?

Snips



[Aggeloseco]

I am using the internal sensor of B54. My offsets are not being set , but there were always not set up



[Snips]

Do you see the sensor reacting when you view the monitor page?

Snips



[Aggeloseco]

Yes It does react, it shows the rolling declination
, I think with a small lag , but it could be software related which show it a bit later



[Snips]

PM sent.

Snips



[Aggeloseco]

I don’t have any Pm, my folder is only 20% filled. Can you send it again?



[Aggeloseco]

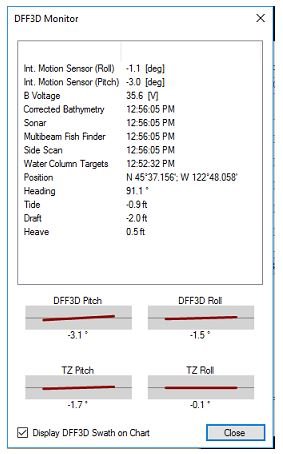

I was again yesterday offshore with my Boat. Unfortunately I didn't manage to find what the problem is. I still got the Rolling effect. On my monitor page the Internat motion sensor is reacting , but I don't know why is not integrating to the cross section.

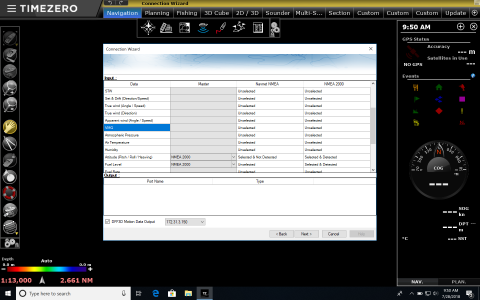

One thing I noticed, is that , on the connection manager settings, the option for the Roll & Pitch is detected only for NMEA 2000 but for the Navnet NMEA ( DFF3D) is set to selected & undetected.



[Aggeloseco]

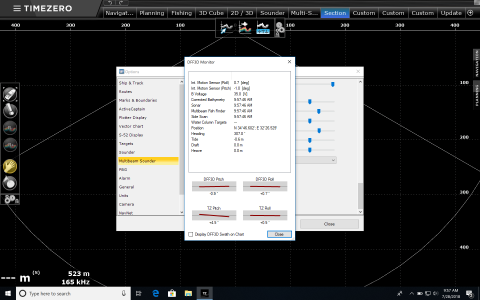

Here are some photos



[Snips]

PM re-sent.

Snips
