nmea to fap 7002 wiring.

[rodneymeyers]

I want to wire my nmea200 into the fap 7002. I know it goes to T11, but what is the color wiring diagram? Does anyone know this?



[Johnny Electron]

Wiring and color code is shown on page S1 (Interconnection Diagram) in the manual.



[Magnetron]

I want to wire my nmea200 into the fap 7002. I know it goes to T11, but what is the color wiring diagram? Does anyone know this?

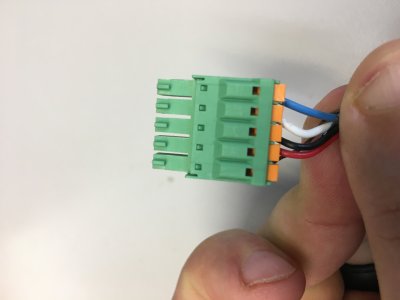

Here's what it looks like if you followed the interconnect diagram:



Hope this helps, :sail

- Maggy
