Furuno Radar Identification

A

Anonymous

Guest
I have a Furuno Radar that I am having a difficult time identifying.
The badge only shows the first part of the part number which is:
RSB-0073
There are two models of this radar; a 6kW and a 12kW.
RSB-0073-085 - (6kW)
RSB-0073-086 - (12kW)
The Serial number on the unit looks to be: R161-1550
Can you help me identify which radar I have?
Any help would be greatly appreciated.
Thank you


Attachments

  • IMG_1415.JPG
    395.1 KB · Views: 1,193

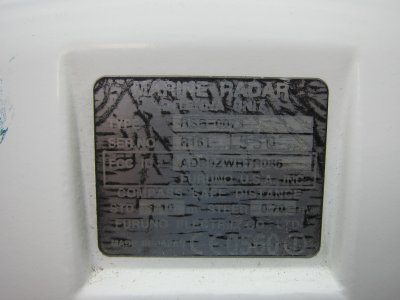

Based on your photo which shows the RTR (last three digits of FCCid) as 086; you have the RSB0073-086 (12kW) Furuno FR8122 radar scanner.
