FCV588 power/nmea socket

[NZBman]

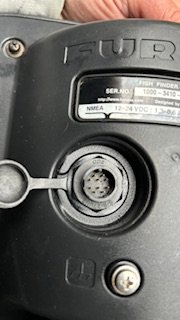

I am trying to figure out if the broken pin is pin 2 or 7

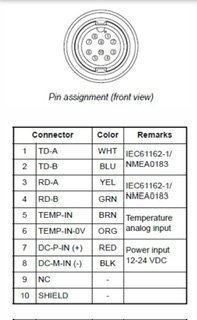

it is not clear to me if the picture that is shown with the wiring diagram is the male or female.



[Johnny Electron]

Maybe someone else can see which is broken the photo. It isn't close enough to be apparent to me.



[NZBman]

Thanks Johnny. It is the second row right pin on the photo. Because this is the male socket and i think the wiring diagram is the female plug i think it is pin 7 ie DC+



[Johnny Electron]

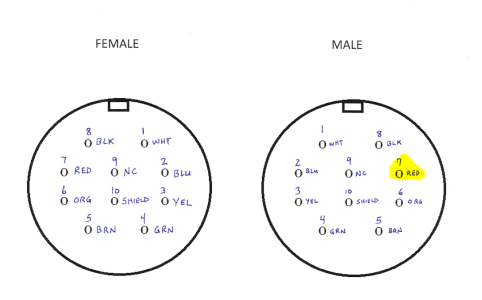

The back of the unit has a male connection. Pin 7 would be as shown and connected to the RED power wire.
These chassis jack connectors are soldered on a board in the machine. Normally a tech would replace the 10-pin power/data chassis jack connector (000-156-406) if broken/bad.



[NZBman]

Thank you for the image of the male socket.
Can I assume the replacement socket is still a readily available spare part?



[Johnny Electron]

Can't speak for the dealer but Furuno has them in stock.
