587 tm260 interference from 115 etec

A

Anonymous

Guest
ive got problem with my 587 with tm260 on 50khz side im getting bad from motor 200khz works fine my motor is 07 115 etec this photo is taken on drift running 587 on battery pack and tranducer cable running along deck with motor in neutral anyone got any ideas ive tryed running alloy foil along traducer cable near motor with no luck

Junior88,
Thanks for your screen shot. You look to have two issues, one is electrical and the other is water flow. In the case of the electrical, you need to find out how the interference is getting into the sounder, is it through the power or transducer cable. First put the boat in gear so the noise appears. Then disconnect the transducer from the sounder and turn the gain up to 10 to see to the noise is still there. If the noise is still present you may be able to add an inline noise filter on the power leads to suppress it. If the noise goes away you are dealing with a radiated noise being picked up by the transducer, this type of noise is much harder to deal with. If you have another transducer available I would try hanging it over the side in a different location to see if you see any difference. If you do, maybe rerouting the transducer cable may help. Also have you tried grounding the case of the sounder? The other issue a see are the gaps in the bottom which is an indication of turbulence going over the face of the transducer.

Snips

im pretty sure its coming from transducer in the photo my sounder is running off a separate battery and i ruled out turbulence because the boat is only doing 1kt the hole photo i used choke lever to bring up revs with motor in neutral

Junior88,

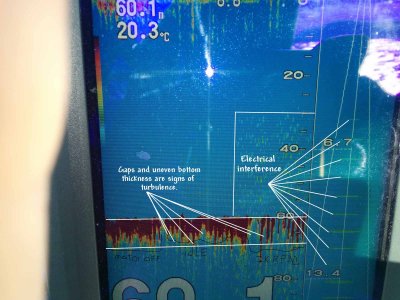

When I look at your screen shot this is what I am looking at.

Snips


Attachments

  • ftcvop 2.jpg
    ftcvop 2.jpg
    170 KB · Views: 1,490
