Is there a diagram for wiring a 526tid-hdn to a fcv1150? I’m sure it’s somewhere but for the life of me I can’t find one. Thanks.



[kicker]

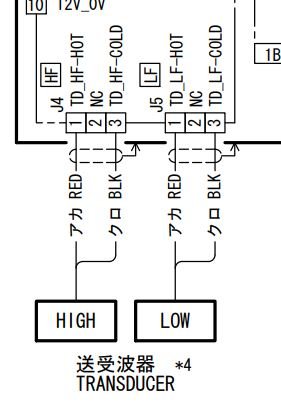

You should have the following wire colors.

Blue = HF+
Black = HF -

Blue/white = LF +
Black/white = LF -



[Tunaorlater]

Thank you!



[Tunaorlater]

Can I use the temp from this ducer or do I have to use an external with a plug?



[Johnny Electron]

For the FCV1150, the only temp connection is on the outside at the STW/TEMP connection (6 pin)



[Tunaorlater]

Ok thanks. I have one installed but was hoping I could have 2 and check accuracy.
